This new Mac Pro-inspired motherboard standard banishes all power cables for a single connector rated at over 2,000 W

Experience boosted by 80%! Rear I/O 3.0: Making more people willing to DIY.体验飙升80%！背插3.0：让更多人愿意DIY - YouTube

The latest version of the BTF or Back to the Future rear-connect standard for motherboards, BTF 3.0 , goes even further in its quest to banish cables for a super-clean look, this time consolidating power supply for everything into a single server-derived power slot rated at over 2,000 W.

To that end, features like the BTF supplementary power connector for graphics cards does away with plug-in cables in favour of an additional slot on the motherboard—which in turn requires custom-designed graphics cards—are at the heart of the standard.

But for the most part, BTF 2.0 mostly moved cables and connectors to the rear of the motherboard rather than actually getting rid of them. The new BTF 3.0 revision, however, takes cable consolidation to a new level by amalgamating literally all power into a single 50-pin connector.

If that sounds ambitious, it's derived from the CRPS power supply standard used by enterprise servers, in which application it's rated to over 3,000 W. For BTF 3.0, this interface tops out at 2,145, with 1,680 W available for the CPU and GPU.

BTF 3.0 — A single 50-pin connector via a ribbon between the PPSU and the motherboard handles all system power. (Image credit: DIY-APE)

That's plenty for even the most demanding current processor and graphics card combo, which is probably a 270 W TDP AMD Ryzen 9 9950X3D paired with Nvidia's 650 W RTX 5090 graphics.

Another intriguing element is a new modular take on the aforementioned GPU power connector. The existing BTF standard means that compatible graphics cards can only be used on BTF motherboards.

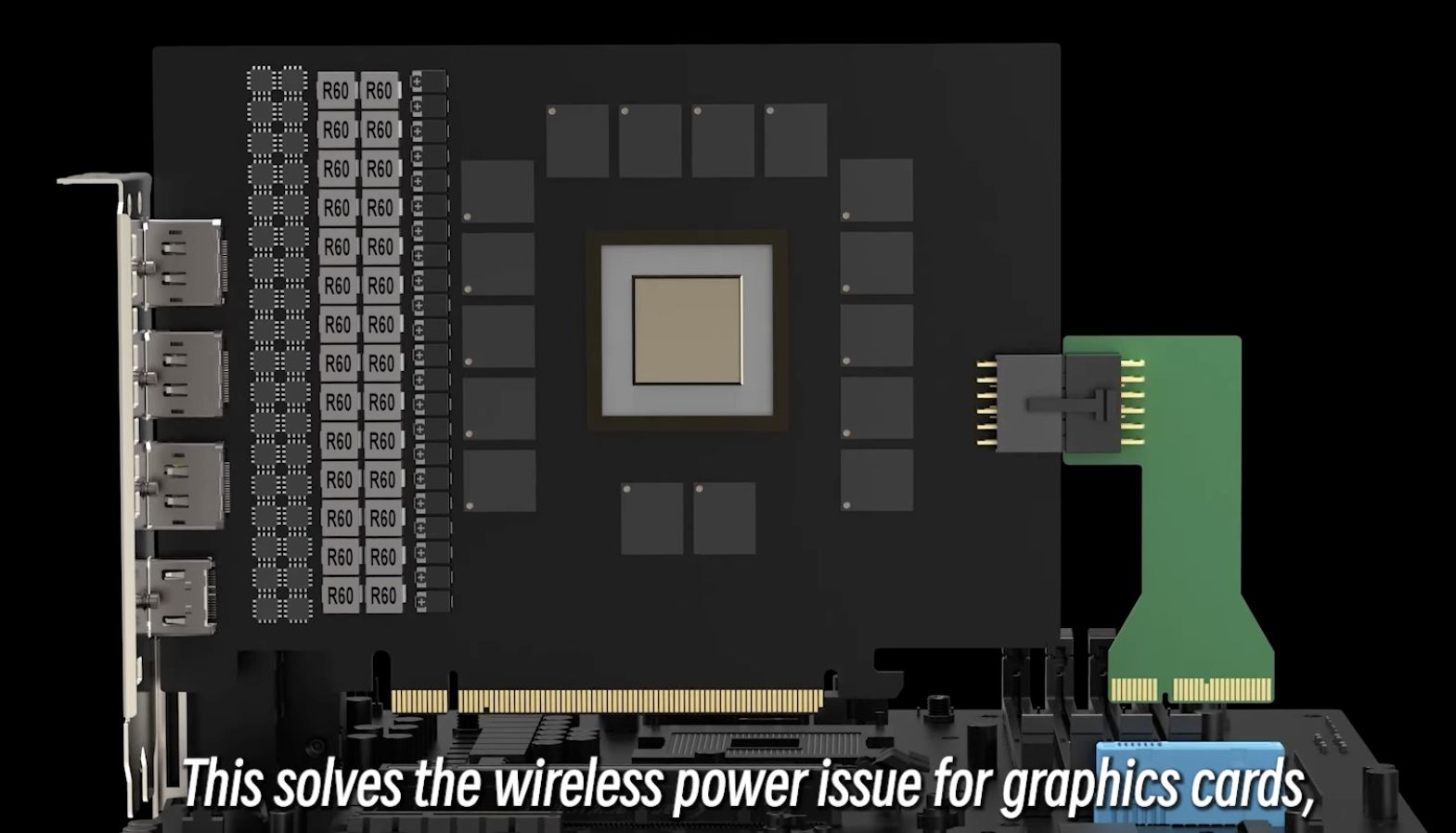

With the new BTF 3.0 revision, a new GPU power board plugs directly into a standard 12V-2x6 12-pin GPU power socket on the end of the GPU board. In turn, that board then slots into the BTF GPU power socket on the motherboard, enabling a cable-free GPU.

However, without the GPU power board plugged in, the graphics card is essentially standard, complete with the 12-pin power socket and compatible with any regular motherboard and PSU. Clever. (For the record, it seems similar to the BTF 2.5 graphics adapter that Asus announced earlier this summer, but it's not totally clear how the two are related).

Of course, BTF 3.0 isn't quite a fully cable-free solution. Various headers and connectors remain on the rear for functions like the front panel I/O, SATA and more. But it's getting there.

Incidentally, you may not know that BTF is not, in fact, a project backed by big motherboard makers. Instead, it's the work, essentially, of a DIYer who goes by the handle DIY-APE who has been inspired by the idea of creating a PC equivalent to the sleekly cable-free Apple Mac Pro. BTF 3.0 brings DIY-APE a significant step closer to that aim.

His latest video takes you through the whole story of how he developed the standard despite limited technical knowledge, promoted it with reluctant motherboard makers and iterated various features. It's all very impressive and well worth a watch, with oodles of interesting details.

The video also helps you to understand why standards like this generally don't get adopted. But DIY-APE seems to be incredibly dedicated to the cause and it's remarkable that he managed to get big OEMs like Asus to adopt BTF at all.

So, there's at least some cause to hope that BTF will become more widely adopted. Apart from the reduced cable clutter, reducing all the power cables to a single connector doesn't half make PC builds simpler. We like, we like a lot.
