MSI GeForce RTX 4080 Suprim X graphics card

MSI GeForce RTX 4080 Suprim X

An excellent RTX 4080 that's handicapped by its price... as is the case for all Nvidia RTX 4080 cards.

(Image: © Future)

Our Verdict

MSI’s RTX 4080 Suprim X is stunning, cool and quiet. It's cooling array and PCB will never be stressed by the power requirements of the AD103 GPU. Wherever its price finally ends up, the Suprim X will remain an excellent card.


  • Class leading build quality
  • Very good performance, especially with DLSS
  • One of the quietest GPUs of all
  • Great looks


  • Too expensive - like all RTX 4080s
  • It's huuuuuge, requiring careful case consideration

PC Gamer's got your back Our experienced team dedicates many hours to every review, to really get to the heart of what matters most to you. Find out more about how we evaluate games and hardware.

Ahh the Nvidia GeForce RTX 4080. It’s a very good graphics card that delivers an excellent generational performance uplift, very good power efficiency and unique features such as DLSS 3. All good things right? But it's too expensive.

A wise old reviewer once wrote: "There are no bad graphics cards, only bad prices." That sums up the RTX 4080 in a nutshell. But while pricing can vary over time, the characteristics of the card stay the same. Assuming the price of RTX 4080 drops—and with perhaps two years of shelf life ahead of it, it surely will—then the RTX 4080 may end up being a gem. Time will tell.

Here today I have MSI’s GeForce RTX 4080 Suprim X, and what a beauty it is.  At $1,379 | £1,359 | AU$2,449 it's one of the pricier RTX 4080s at the time of writing, though for the extra money over the Founders Edition, you get a card that is markedly superior. Interestingly, the price of the card has dropped a little in the UK and AU markets in the weeks since its launch, and stock seems to be widely available. It's clear we're not dealing with anything like the mining boom scarcity we all hated. It surely points toward downwards price pressure as we move further into 2023. Fingers crossed.

The Suprim X, like all other RTX 4080s, contains the excellent TSMC built 4N AD103 GPU at its heart. It has 9,728 out of a possible 10,752 cores available, leaving Nvidia with an option to release an almost inevitable RTX 4080 Ti in the future. It delivers much better power efficiency than its RTX 3080 predecessor, which contained the much larger GA102 GPU. The RTX 4080 packs in 64MB of L2 cache vs. the 5MB of the RTX 3080. A next generation GPU is expected to have a better feature set, and with 16GB of GDDR6X memory, improved ray tracing and the voodoo of the excellent DLSS 3, a 320W TDP, and immense cooling capacity, the RTX 4080 Suprim X ticks all those boxes.

That 320W TDP is particularly noteworthy, giving it performance per watt that's vastly superior to the RTX 3080, RTX 3090, and their Ti siblings. It makes a mockery of the rumor mongers pointing to ridiculous TDPs in the period prior to the launch. It's an outstanding GPU, but did I mention it's too expensive? Yes. Yes I did, and I probably will again.

MSI GeForce RTX 4080 Suprim X specs

The MSI GeForce RTX 4080 Suprim X is MSI's flagship RTX 4080. It sits above MSI's Gaming Trio and Ventus models. For the extra money, you get a more premium design, superior materials, build quality, and a slightly higher factory overclock. It's worth mentioning that MSI includes a very sturdy metal GPU holder to prevent sag, and a good quality mouse pad.

RTX 4080 Suprim X specs

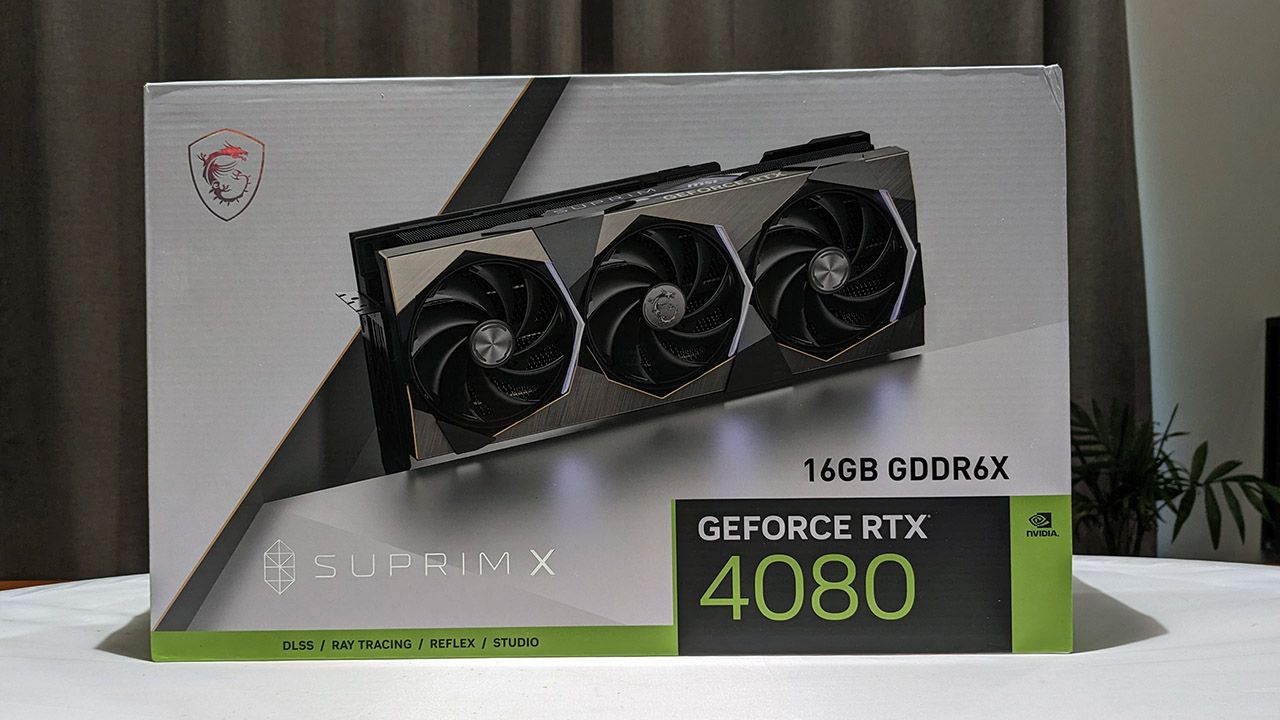

MSI GeForce RTX 4080 Suprim X card and box

(Image credit: Future)

GPU: Nvidia AD103-300-A1
Shader Units: 9,728
Boost clock speed: 2,625MHz
Memory capacity: 16GB GDDR6X
Memory speed: 22.4Gbps
Outputs: 3x DisplayPort 1.4a, 1x HDMI 2.1
Power connectors: 1x 16-pin
Price: $1,379| £1,359 | AU$2,449

The Suprim X's officially rated boost clock is 2,625MHz, though you can get an extra 15MHz on top of that via the MSI Center app. As is often the case though, Nvidia's rated boost clocks don't mean a whole lot in practice. In our testing, the card was able to hold a boost clock of 2,745MHz while looping 3DMark Speedway.

The finish of the card is stunning. Looks are in the eye of the beholder, but I believe it to be the best looking of all RTX 4080 cards. It's got some RGB as you'd expect, and it's a very tasteful implementation. There are three small elements adjacent to the fans, one at the top facing the outside of the case and a logo on the backplate.

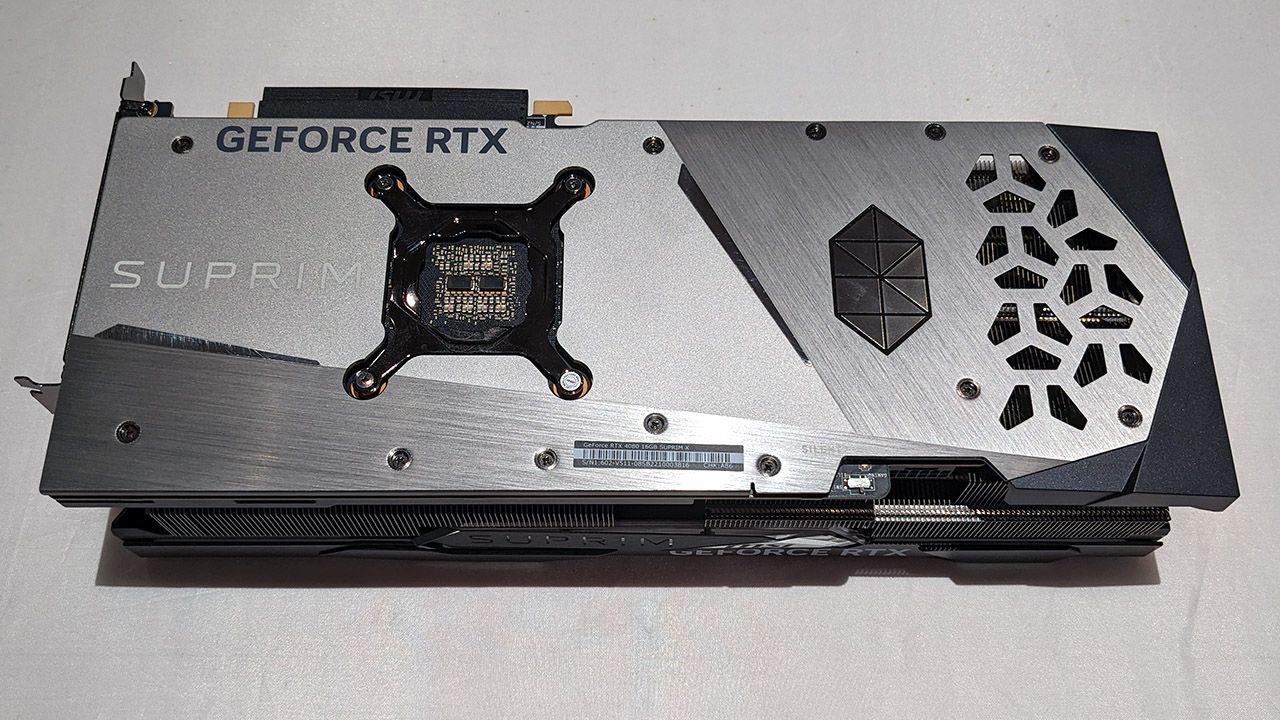

The card is surrounded by a brushed metal shroud and backplate. MSI smartly left the sides of the card relatively free from obstruction, allowing hot air to vent out effectively. It’s a big card too, taking up close enough to four slots.

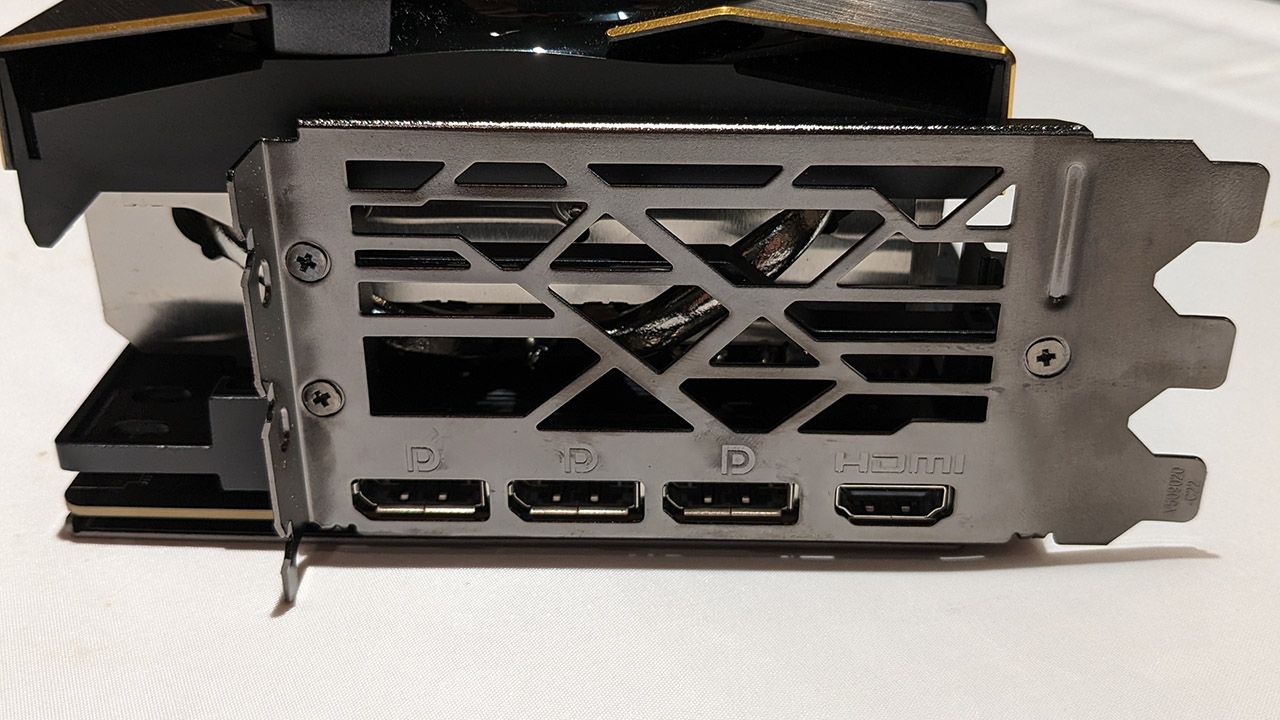

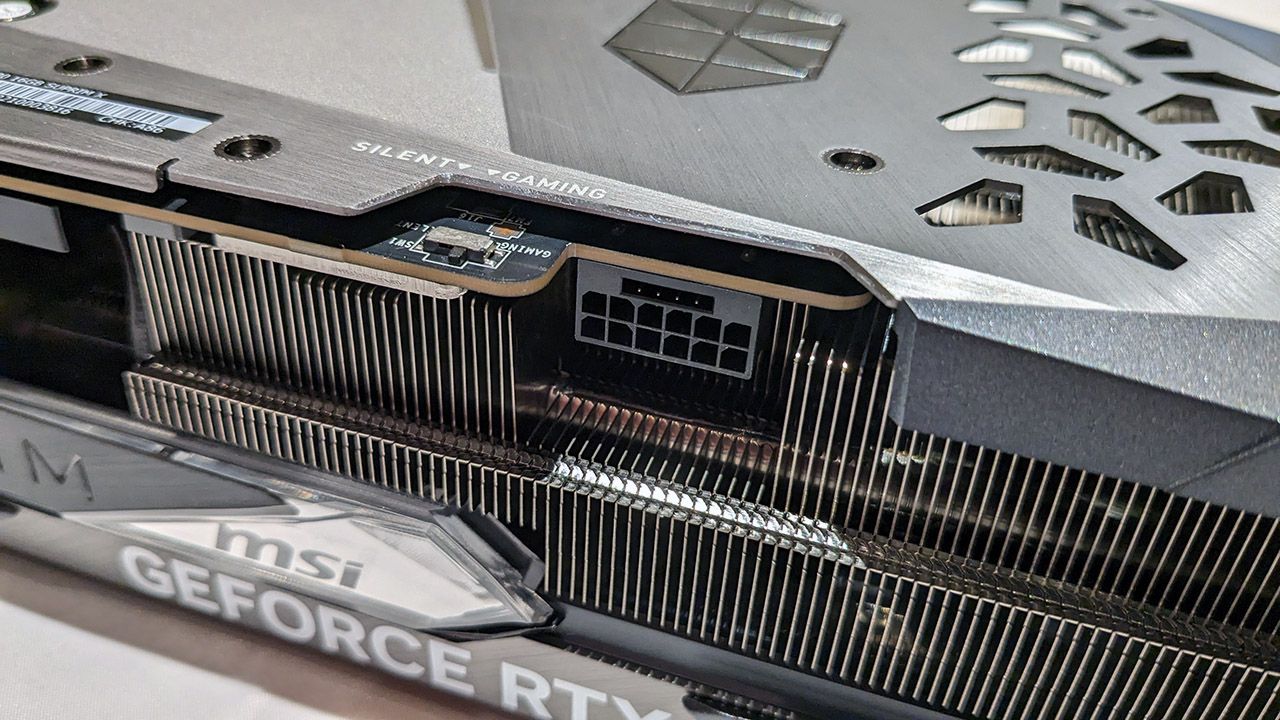

Like most 4080s, it comes with three DisplayPort 1.4a and one HDMI 2.1 port. Ada Lovelace cards miss out on DisplayPort 2.0/2.1. You also get dual BIOS, with silent and gaming options, though there's little need to use the silent option when the default setting is basically silent anyway. A single 12VHPWR connector provides the juice, with MSI bundling a 3x8-pin power adapter.

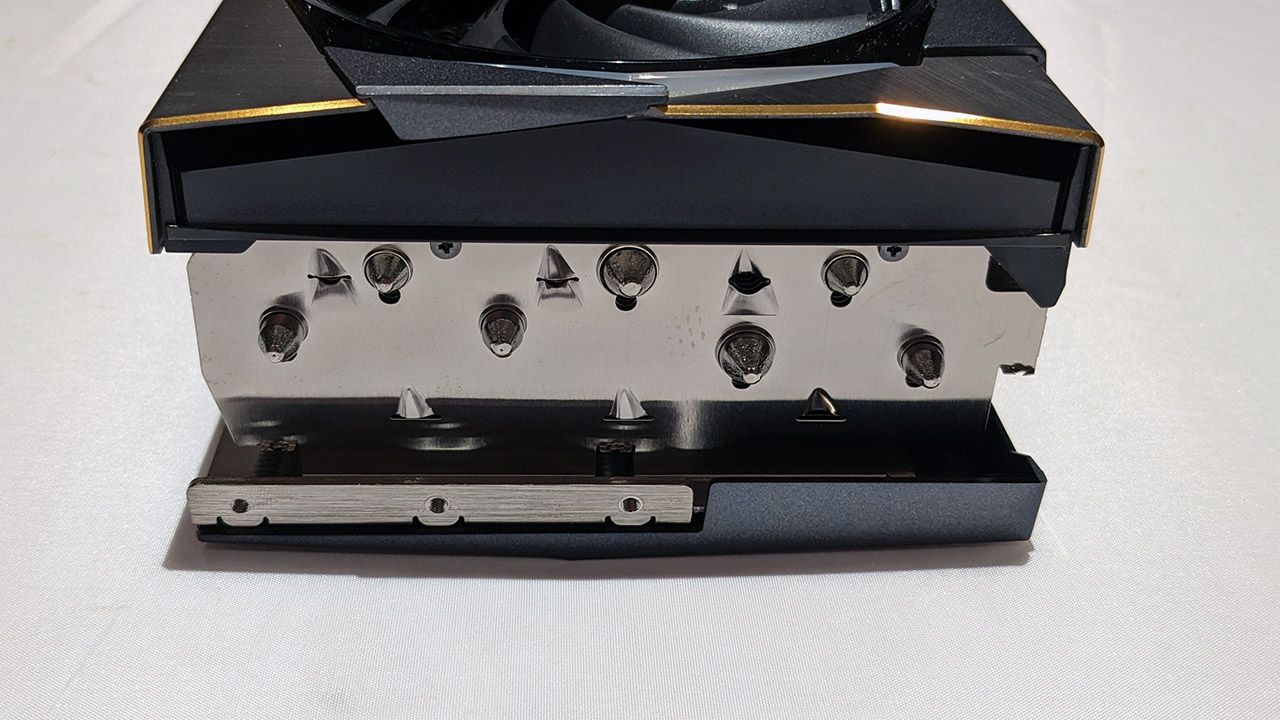

Now, take a look at that cooler! The AD103 won't ever get away with a single slot cooler but at 320W, it presents no challenge for the Suprim X's 450W+ RTX 3090 Ti/ 4090 class cooler. It's based around a vapor chamber, with no less than ten heatpipes dissipating heat to the further reaches of its massive surface area.

The VRM and memory chips are cooled via thermal pads and there's an additional frame atop the PCB that adds rigidity and cools additional components. The backplate too has some thermal padding for rear mounted heat dumping components.

The PCB itself is a custom design, with 18+3 phases and 50a stages. Put simply, it's overkill for the requirements of the AD103 GPU, but it's better to overspec than underspec! Much like we saw with the Zotac RTX 4080 Amp Extreme Airo, the Suprim X includes 24Gbps rated GDDR6X memory, faster than the 22.4Gbps rated clock of the card. This means there should be some OC headroom.

MSI GeForce RTX 4080 Suprim X benchmarks and performance

Of course, a great looking card with awesome build quality isn't going to be rated highly if it performs like a turkey. We have a good idea of what to expect from the RTX 4080 though, so let's dive in.

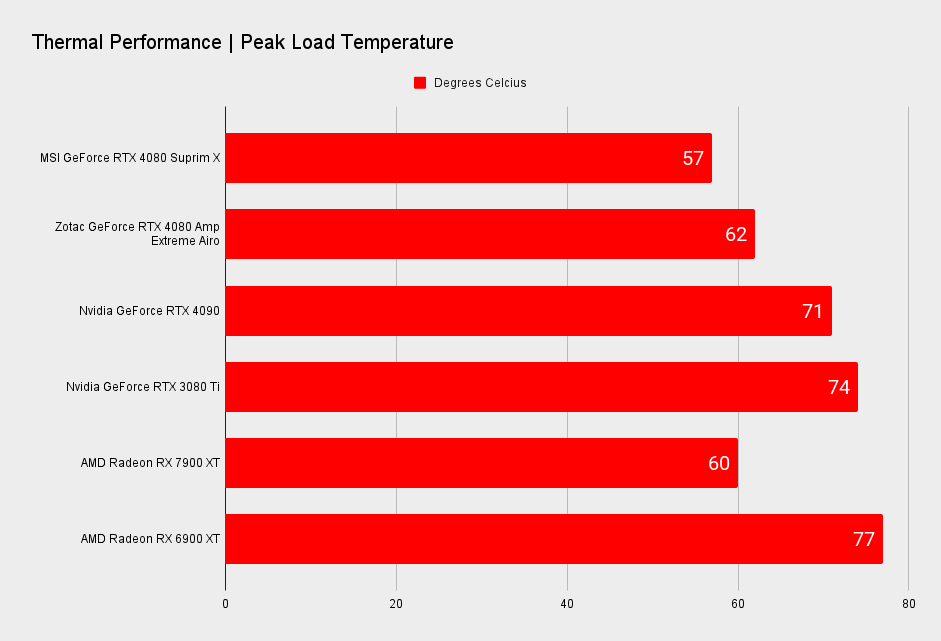

The monstrous Suprim X cooler really delivers. A peak temperature of 57°C is one of the best I've ever seen from any GPU, high end or not. That's a full five degrees cooler than the Zotac Airo. And it manages it while remaining all but silent. The CPU cooler fans and pump on my test platform are more noticeable. Admittedly 57°C is on an open test bench, so in a case your temps will be a little higher, but even in the mid 60s it would still be an outstanding result for a 320W GPU.

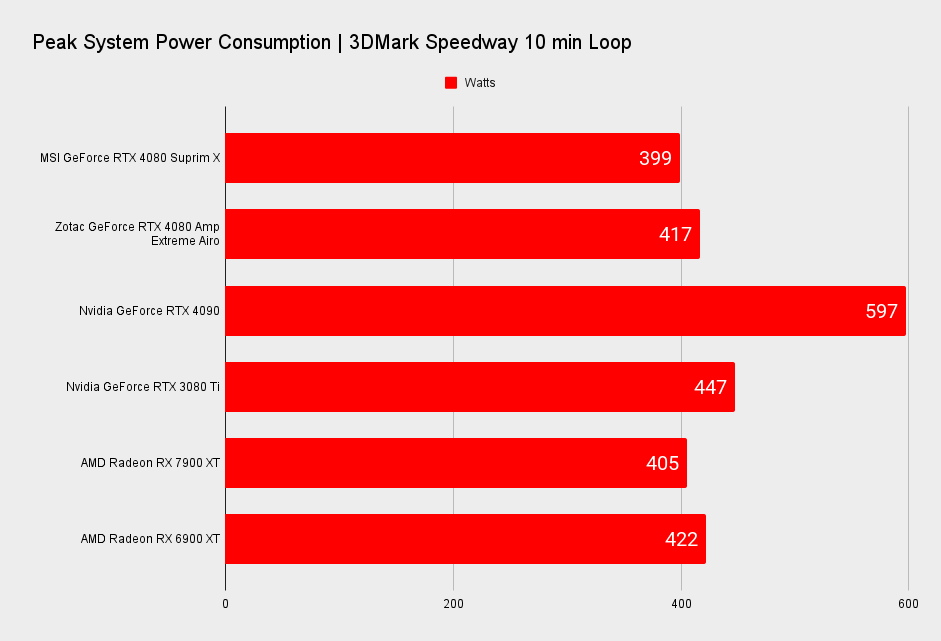

One of the most impressive RTX 4080 feats is its relatively low power consumption, or more specifically its performance per watt. I recorded a maximum system power draw of 399W for the Suprim X. That's lower than the Zotac RTX 4080, the RTX 3080, RX 6900 XT and even the RX 7900 XT.  For all the pre-release whispers of runaway RTX 40-series power consumption, the RTX 4080 delivers what appears to be the best power efficiency of any card released to date.

That lower power consumption does cost a fraction of performance though. The Zotac 4080 uses the extra 20w or so to sneak ahead a percentage point or two in some of the following benchmarks.

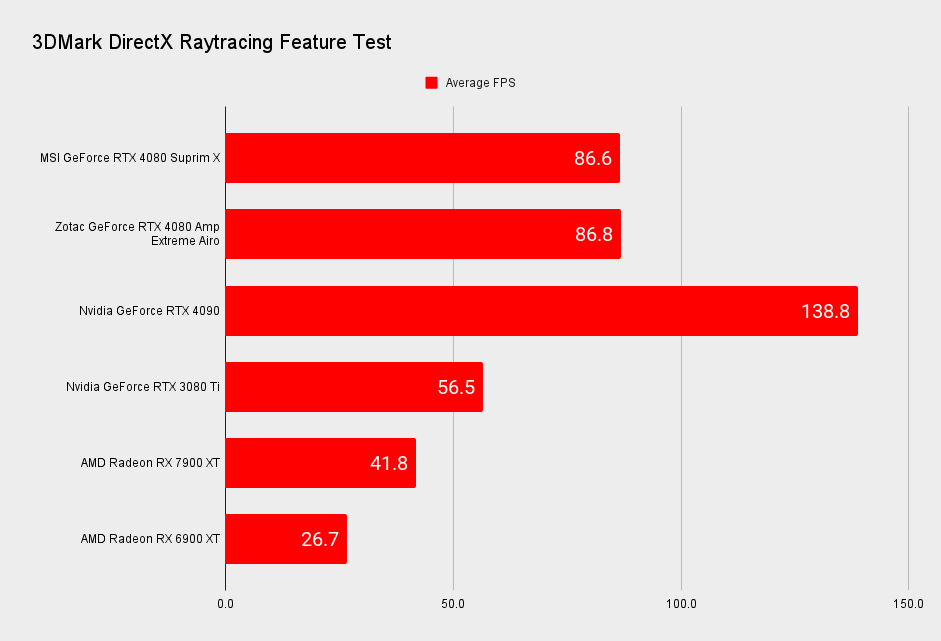

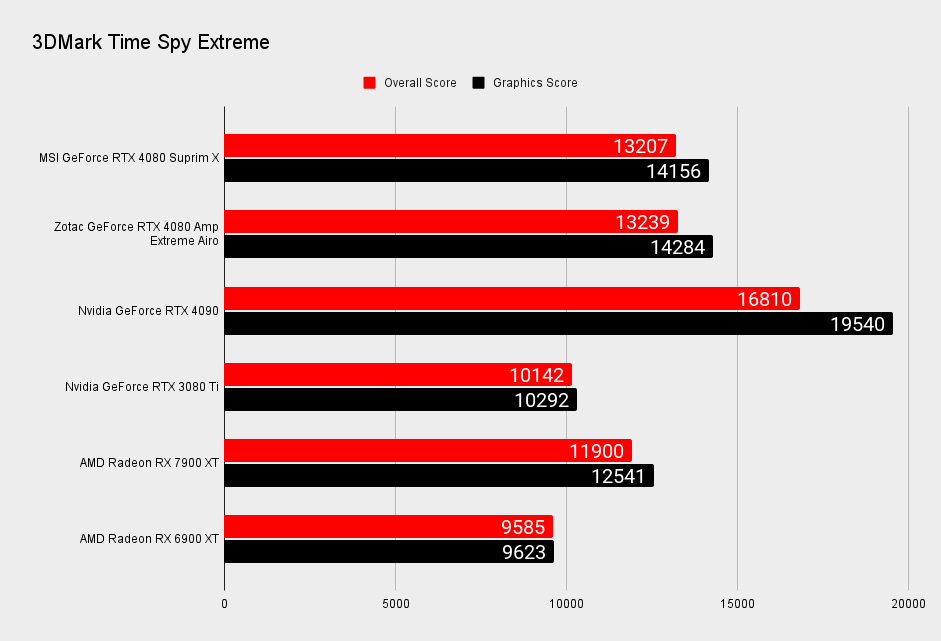

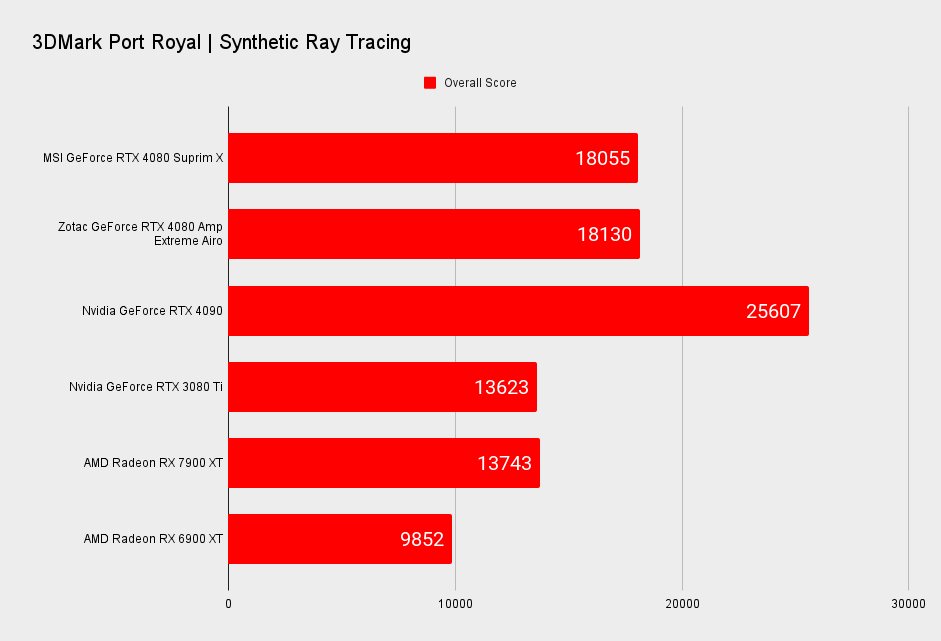

Synthetic gaming performance

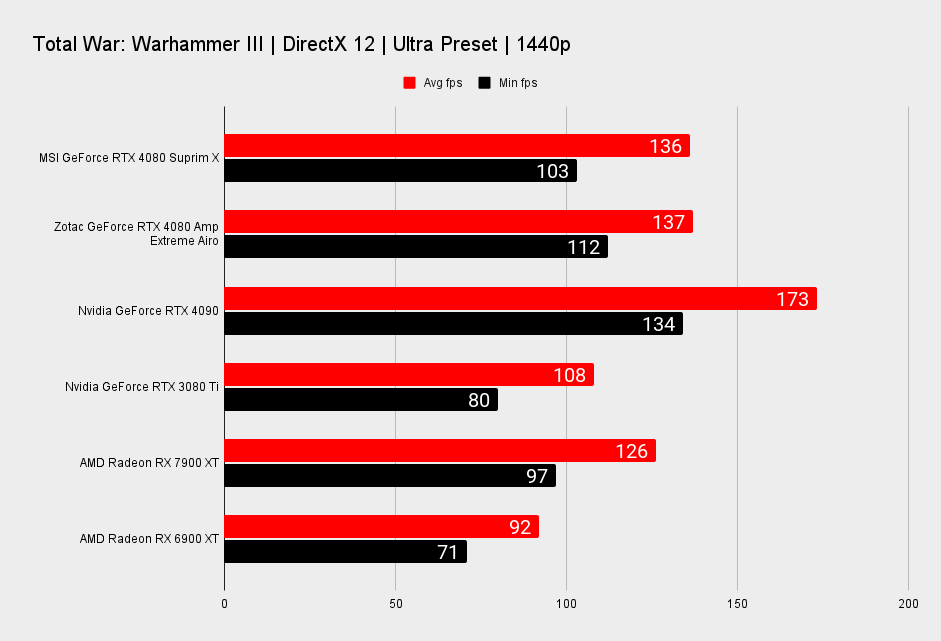

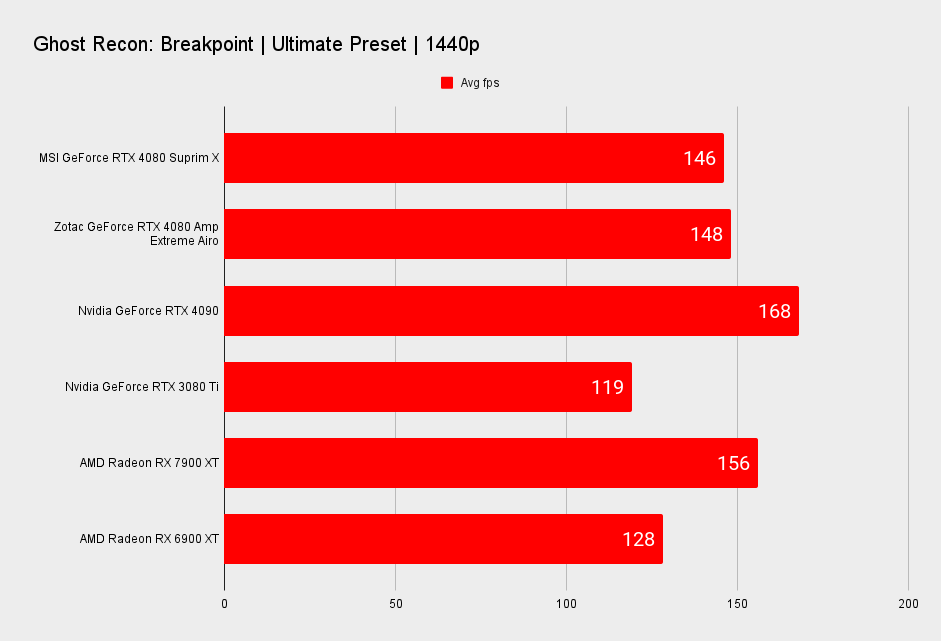

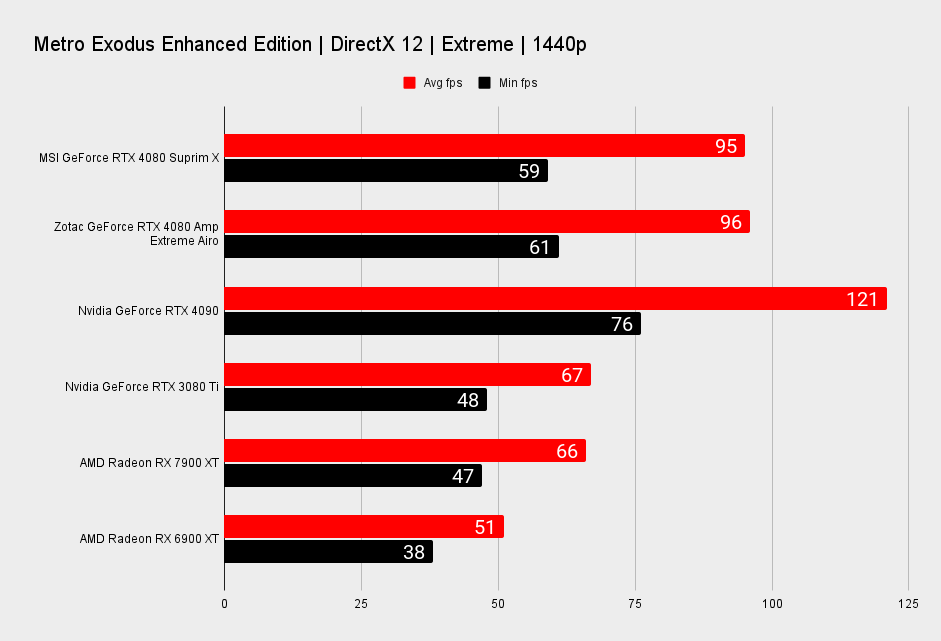

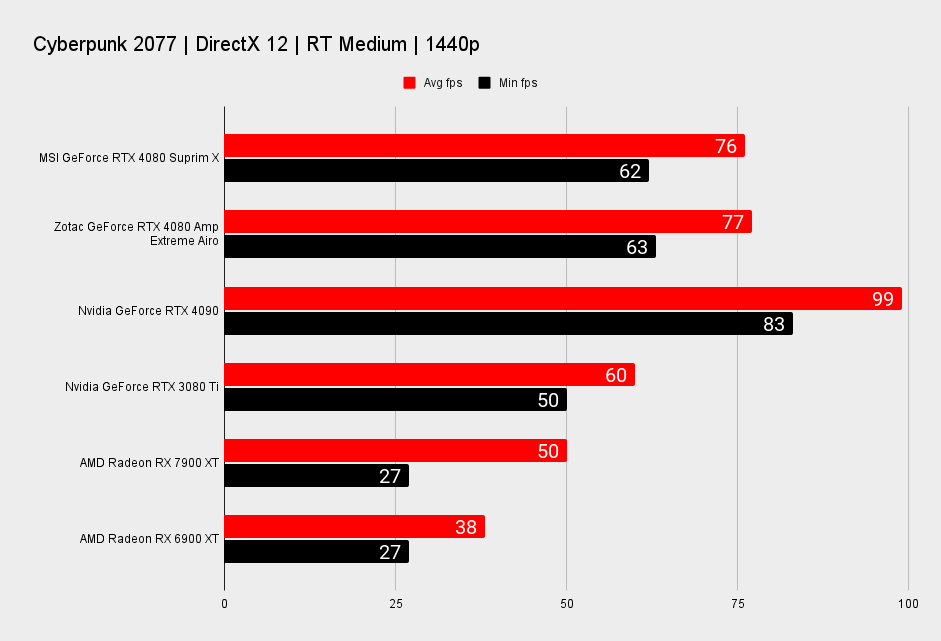

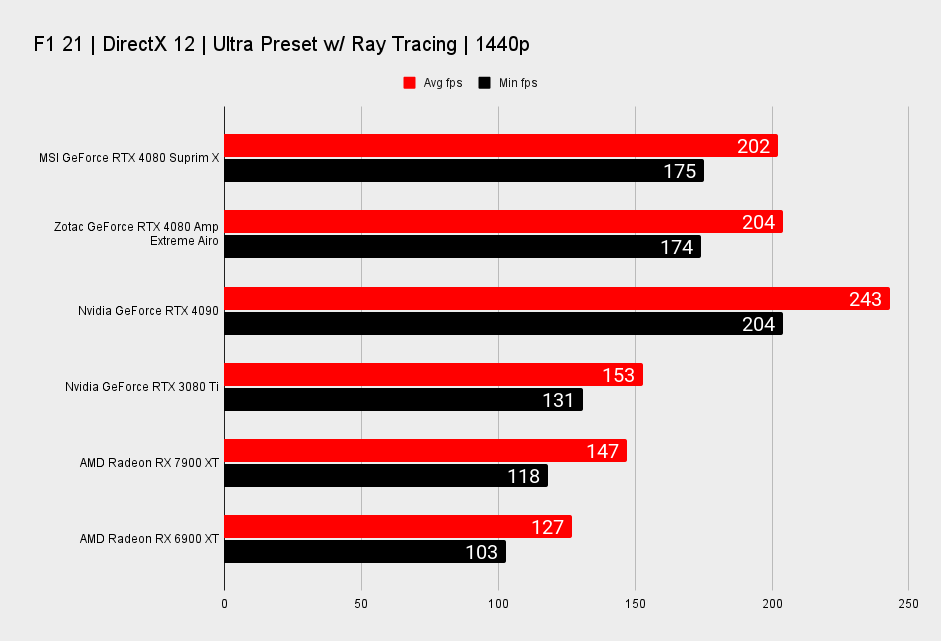

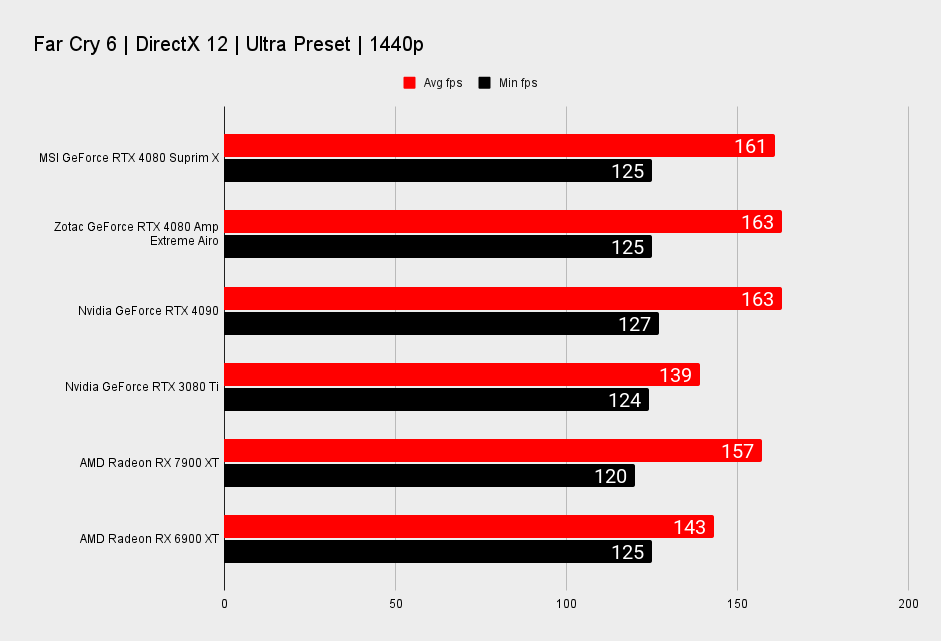

1440p Gaming Performance

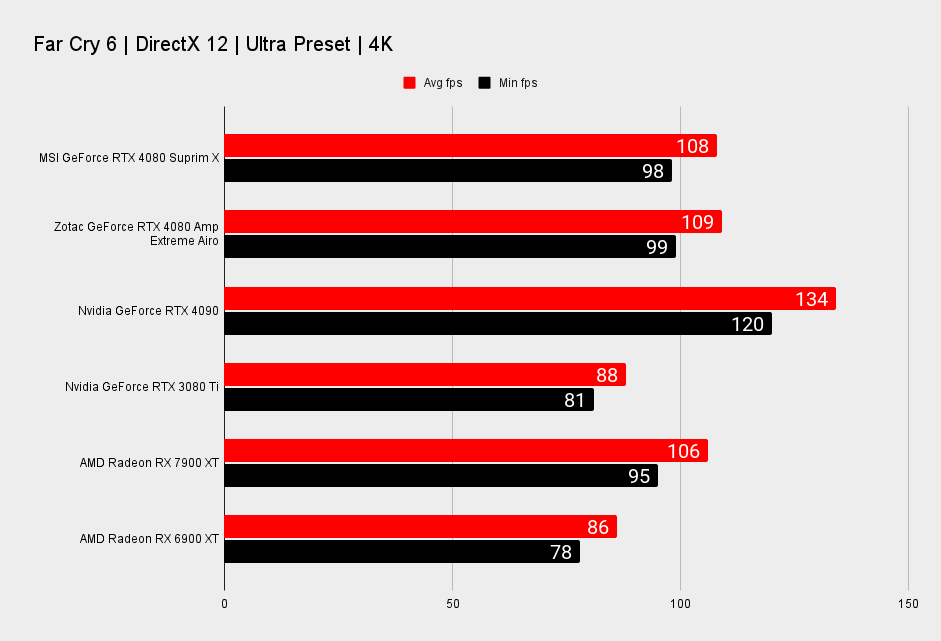

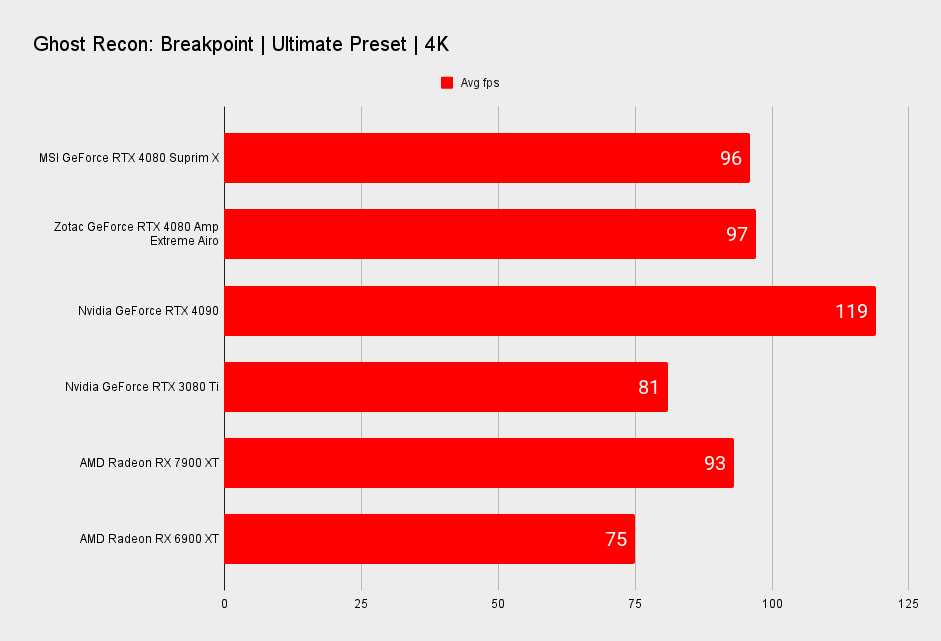

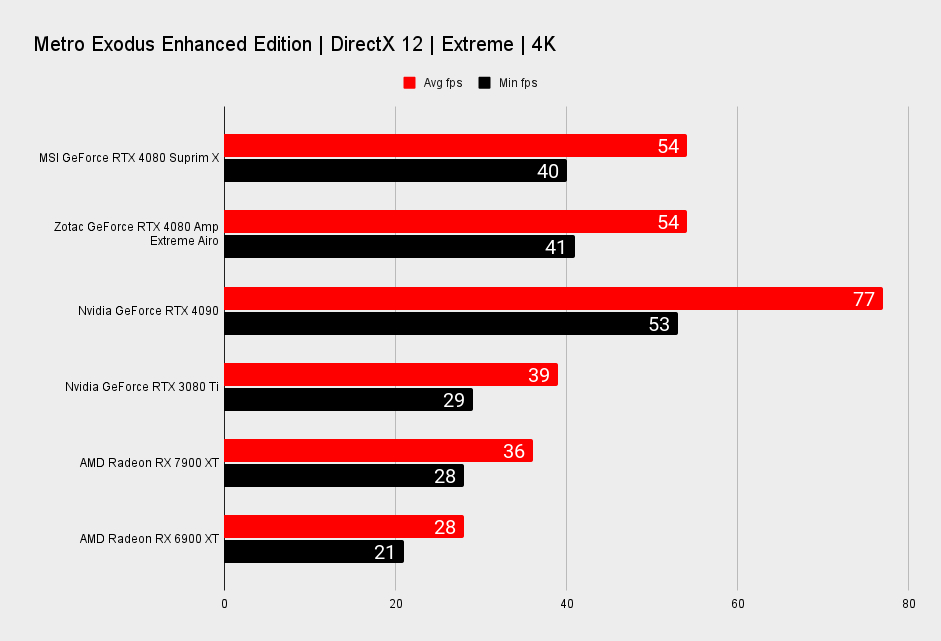

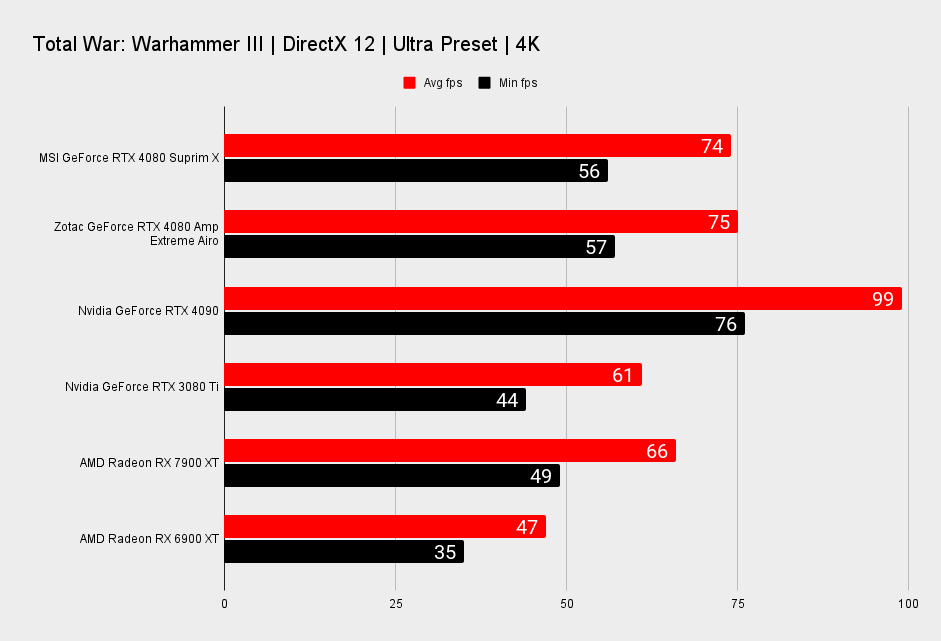

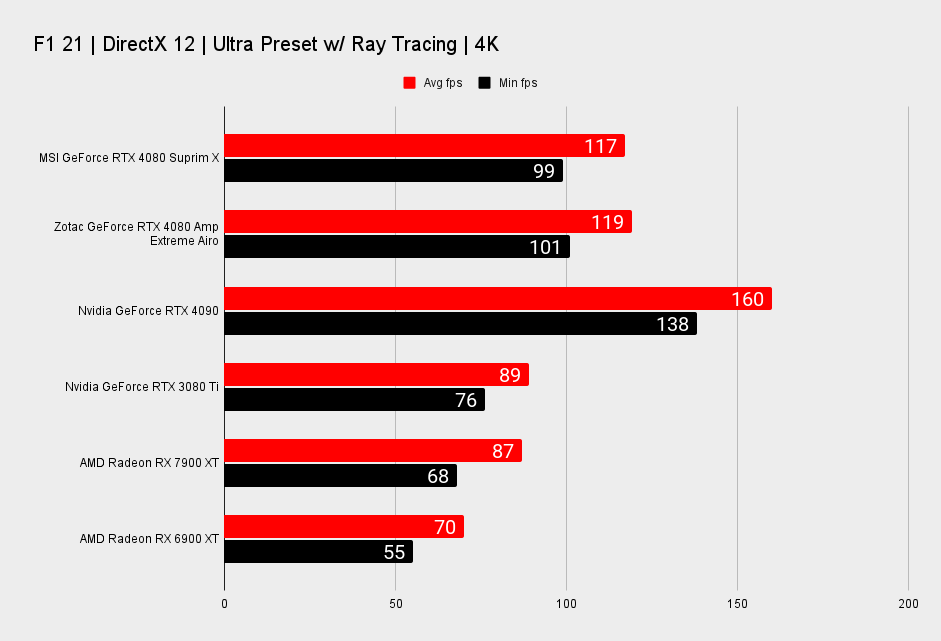

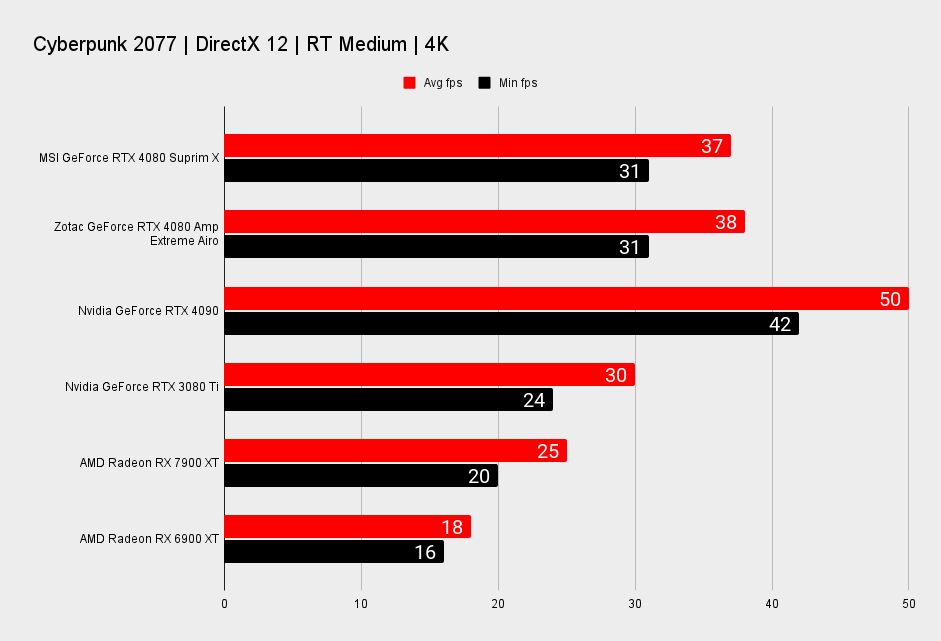

4K Gaming Performance

MSI GeForce RTX 4080 Suprim X analysis

The RTX 4080 Suprim X delivers very good performance, but it appears as though MSI has placed emphasis on cool and quiet operation rather than all out performance. Not that that's a bad thing, though it would be nice if manufacturers used the second BIOS in a more aggressive way, perhaps allowing a 450W power limit. Nvidia might not be happy with that though.

Test rig

CPU: Intel Core i9 12900K
Motherboard: Asus ROG Maximus Z690 Apex
RAM: 2x 16GB G.Skill Trident-Z DDR5-6000 C36
Storage: 2TB Seagate FireCuda 530
Cooling: Cooler Master PL360 Flux 360mm AIO
PSU: Corsair AX1000

At 1440p, even the most demanding titles including Cyberpunk 2077 without DLSS is possible and in many cases, even a 12900K CPU bottlenecks the card.

Most of the games that struggled to break 60Hz at 4K can now do so, even with ray tracing effects enabled, and that's before enabling DLSS.

At the time of writing, I haven't had the chance to comprehensively benchmark the Radeon RX 7900 XTX myself. If you look at our launch day review, you can see it's a decent enough RTX 4080 competitor, though it can't match Nvidia in ray traced games. It's cheaper too, and definitely worth considering if you can live without the RTX 4080's superior ray tracing performance and more importantly, DLSS.

MSI GeForce RTX 4080 Suprim X card and box

(Image credit: Future)

MSI GeForce RTX 4080 Suprim X verdict

If we ignore the price for a second, the RTX 4080 is an excellent graphics card and the MSI Suprim X is arguably the best of the lot. It's built like a battleship, it's cool, quiet, it looks fantastic and it has a PCB that will never be stressed by the power requirements of the AD103 GPU.

If we ignore the price for a second, the RTX 4080 is an excellent graphics card and the MSI Suprim X is arguably the best of the lot.

That second is now up. At $1,379 | £1,359 | AU$2,449 it's one of the more expensive RTX 4080 cards, meaning Nvidia, or someone along the supply chain is making a ton of money. But those are today's prices. I don't believe they will stay at these levels beyond the short term. When someone searches for 'RTX 4080 Suprim X review' in a year's time, the graphics card landscape, and what you get for your dollar could look very different. Right now, its tough to recommend a high-end graphics card from a bang for buck perspective.

If you do pull the trigger and buy a Suprim X, at least you know you'll be getting an excellent graphics card that can play all games at 4K and surely will do for the foreseeable future being arguably the best example of Nvidia's Ada GPU. The Nvidia feature set is hard to ignore, too. All we need is some good news on the price front. If that happens, the RTX 4080 and the Suprim X flavor will go from being merely good to becoming great.

The Verdict
MSI GeForce RTX 4080 Suprim X

MSI’s RTX 4080 Suprim X is stunning, cool and quiet. It's cooling array and PCB will never be stressed by the power requirements of the AD103 GPU. Wherever its price finally ends up, the Suprim X will remain an excellent card.
