Best CPU coolers in 2022

Best CPU cooler: Noctua and DeepCool CPU coolers on a blue two tone background
Best CPU coolers in 2022 (Image credit: Noctua, DeepCool)

As temperatures rise throughout the summer, securing the best CPU cooler seems like a no-brainer for ensuring you still get the best performance out of your processor without worrying about overheating. If you plan on overclocking, a CPU cooler is vital for unlocking your CPU's untapped potential and keeping it, well, cool.

There are two types of cooling options: air cooling and liquid cooling. Air coolers are the most common and affordable of the two chilling methods. A metal heat sink pulls heat away from the CPU and then blows it away with a fan or directly cooling the chip itself.

Liquid or water cooling circulates liquid through your system via tubing as a cooling method that's more energy-efficient and quieter. If you're bold, you could try creating a custom water cooling loop, which includes GPU and CPU cooling. Still, that way involves tube-bending and a lot of installation effort and cost, which could be a bit intimidating for PC-building newbies.

Both have advantages and disadvantages, so we've chosen the best from our separate guides: the best AIO cooler for CPUs and the best CPU air cooler. Generally, air coolers are cheaper and more straightforward, while AiO and other liquid coolers can be more expensive but come with extra features, even tiny screens, but require a bit more know-how.

Each of the coolers on this list has been thoroughly tested in the PC Gamer test bench, so I can tell you which offers the most optimum CPU cooling under different workloads. If you're looking for other ways to help get rid of some hot air, you can check out our guide to the best PC fans (opens in new tab)

Water cooling

Best AIO cooler for CPU (opens in new tab)

1. EK-AIO Basic 240

A step up from even the best air coolers

Specifications

Socket support: Intel LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066, AMD AM4 compatible
Scale: 240mm
Full radiator dimensions: 275 x 120 x 27mm
Fan speeds: 550–2200RPM
Noise level: Up to 33.5dB(A)

Reasons to buy

+
Cooling performance nips at the heels of 360mm coolers
+
Good value for money
+
No RGB

Reasons to avoid

-
If cooler aesthetics bother you at all, it is rather plain-looking

In the world of liquid cooling, EK is a name that needs little introduction. The EK Basic series focuses on value for money and performance. Plus, it doesn’t feature any RGB at all. If this appeals to you then the EK AIO Basic 240 is well worth a look. Its absence sure helps to keep the pricing down too.

The EK Basic 240 really stands out thanks to its build quality. It just feels hefty and well built. The included EK- Vardar fans are very good and have a wide operating speed range. It’s good to have some high-speed headroom on tap if you need it. Most of the time it stays essentially silent.

What really impresses us is the cooling performance on offer. We find it goes very close to 360mm levels of cooling capability, It does get noisy if you try to push an overclocked Rocket Lake CPU, but then pretty much every other cooler does too.

The EK-AIO basic 240 is perfect for builds with a stealthy focus or closed case builds where lighting doesn’t matter. With its build quality and high performance, it's a cooler that you can surely set and forget, out of sight, out of mind and out of earshot.

2. Deepcool Gammaxx L240 V2

Awesome bang for buck 240mm liquid cooling

Specifications

Socket support: Intel LGA20XX, LGA1366, LGA1200, 115X, AMD AM4, AM3, AM2, FM2, FM1
Scale: 240mm
Full radiator dimensions: 280 x 120 x 27mm
Fan speeds: 500–1800RPM
Noise level: Up to 30dB(A)

Reasons to buy

+
Terrific value
+
Good cooling ability
+
Effectively silent at idle

Reasons to avoid

-
Can get loud under significant CPU load

Deepcool is well known for its capable AIOs at affordable prices, and the Gammaxx L240 V2 is one of the cheaper 240mm coolers on the market. That makes it a great option for users looking to step up from air cooling into the world of AIO cooling.

The Gammaxx 240mm features basic RGB lighting on the pump head and fans. There’s a more expensive ARGB version should you really want it. Deepcool likes to talk about its ‘Anti leak technology’ which seeks to maintain an optimal pressure balance inside the loop. Which certainly can’t hurt.

The Gammaxx 240 is capable of cooling most processors, too, though like many of the chip chillers on this list it draws the line at AMD's Threadripper beasts. But it keeps the rest running with remarkably low noise levels, which is one of the main reasons we recommend it.

At idle the L240 is effectively silent. As you’d expect, you will start to see an increase in temperatures and noise levels with high TDP processors, especially when overclocking. Our 5800X CPU with PBO enabled is about the maximum we’d consider appropriate for a 240mm cooler. Under load, the fans can and do ramp up quite a bit.

If you’re after a 240mm AIO that’s inexpensive and quiet under less demanding loads, then the Deepcool Gammaxx L240 is a great choice. Sure, it’s noise levels can get high if you push it hard, but at this price it comes highly recommended.

Best mid-tower case (opens in new tab) | Best RAM for gaming (opens in new tab) | Best SSD for gaming (opens in new tab)
Best gaming monitor (opens in new tab)| Best CPU for gaming (opens in new tab) | Best gaming headset (opens in new tab)

3. Corsair Hydro Series H60 V2

Liquid cooling at air cooling prices

Specifications

Socket support: Intel LGA 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2066, AMD AM4, AM3 & AM2
Scale: 120mm
Full radiator dimensions: 157 x 120 x 27mm
Fan speeds: Up to 1700RPM
Noise level: Up to 28.3dB(A)

Reasons to buy

+
Good performance for its small radiator size
+
Generally quiet operation
+
Very affordable

Reasons to avoid

-
Would struggle with super high-end CPUs

The Corsair H60 has been around for some time. Over the years it's seen its tubing, fan, pump and mounting upgraded. The 120mm AIO form factor won’t suit everyone, but those who require a compact cooler to suit something like a small volume ITX build will find it can perform as well as a decent mid-range air cooler. Notably, it lacks RGB, though there is some white lighting around the head.

The H60 V2 is well suited to processors under about the 95w level. Sure, it will be beaten out by a decent tower cooler or AIO with a larger radiator, but their dimensions often rule them out of SFF builds. Heat is the enemy of an SFF system, so the H60’s ability to eject hot air outside the case will benefit the whole system. Corsair includes its SP PWM fan, which operates at speeds of between 600 RPM (at which level it really is silent) up to 1700 RPM. It becomes clearly audible at that point.

The Corsair H60 V2 is perfect for a compact system. It's affordable and should outperform most low-profile air coolers and doing so without having to resort to unreasonable noise levels. It won't suit a high core count or overclocked processor, but then you shouldn’t expect it to. With the right partnering components, it’s an easy recommendation.

Air cooling

Best CPU air coolers (opens in new tab)

Deepcool AS500 Plus CPU air cooler on a blank background

(Image credit: Deepcool)

1. Deepcool AS500 Plus

A fantastic all round cooler that won't empty your wallet

Specifications

Socket support: Intel 1200, 1150, 1151, 1155, 2011, 2066, AMD AM4, AM3, AM2, FM2 & FM1 compatible
Fans: 2x 140mm PWM
Fan speeds: 500–1200RPM
Dimensions (L x W x H): 140 x 102 x 164 mm
Noise level: Max 31.5dB(A)

Reasons to buy

+
Great value
+
Low noise levels
+
Efficient cooling
+
Build Quality

Reasons to avoid

-
Not built for high-end overclocked CPUs

The Deepcool AS500 received worthy attention when it was released, but the AS500 Plus with its additional fan elevates it to the point where it can compete with any single tower cooler on the market. At the same time, it undercuts competitors in price. There aren't many dual fan ARGB supporting coolers at this price. Even if you spent double the money on a premium single tower cooler, your cooling performance won't be a lot better.

Its cooling ability belies its compact dimensions. Only more expensive dual tower coolers beat it, and even then, not by a whole lot. Its dual fan design no doubt helps. It’s also surprisingly quiet. Even when pushed hard the cooler doesn’t get excessively loud. Cooling and low noise levels are welcome, then add to that great build quality and subtle ARGB good looks and there’s nothing to complain about. It even comes with its own ARGB controller, and there’s a white version too if you like.

The Deepcool AS500 Plus punches above its weight (and price). It cools very well, it stays quiet, it's got great build quality, a subtle ARGB splash with its own controller and on top of all that. And, finally, it is great value relative to many dual fan single tower coolers. Short of stressing it with a heavily overclocked high-end processor, the AS500 Plus ticks all the boxes. Highly recommended.

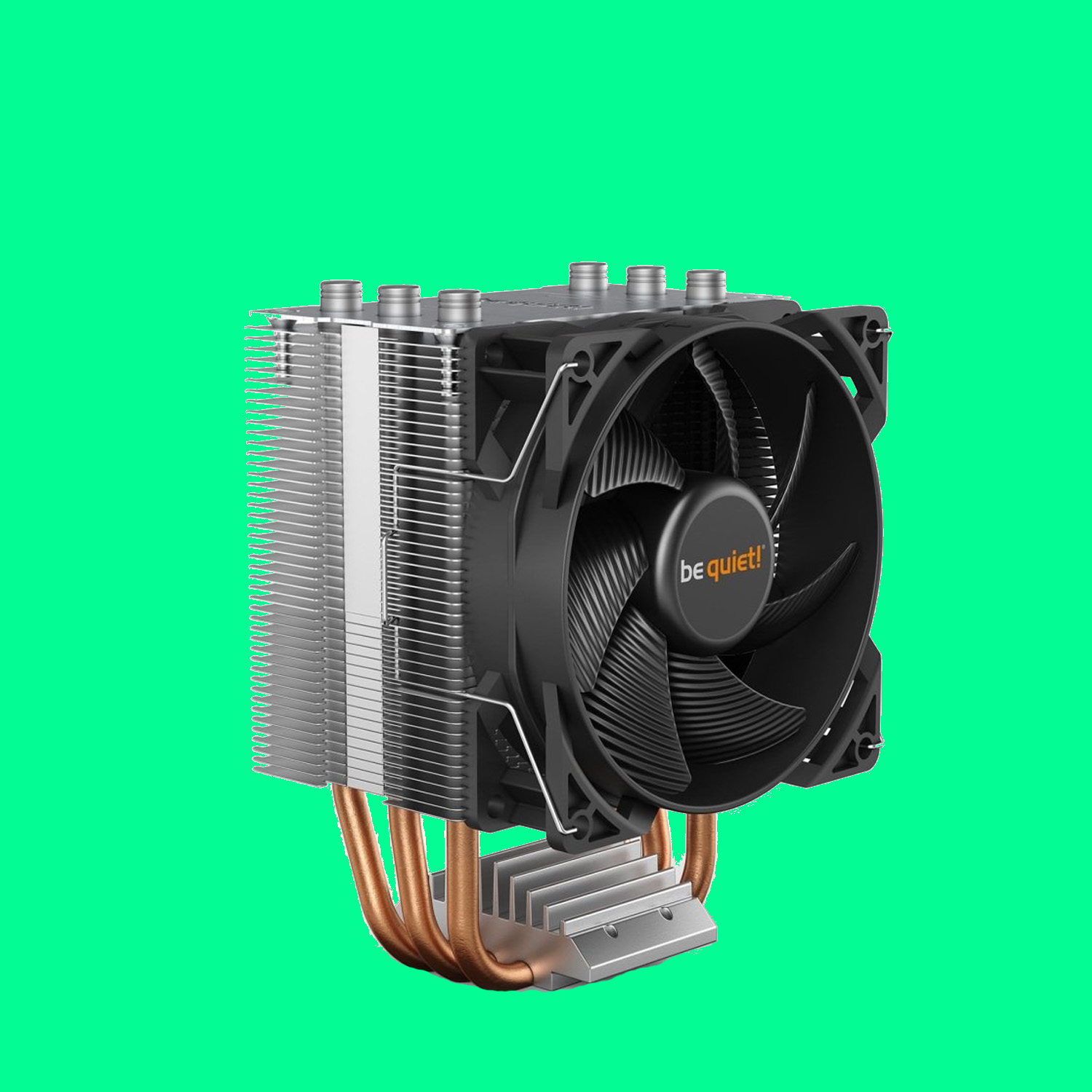

Be Quiet Pure Rock 2 CPU air cooler on a blank background

(Image credit: Be Quiet)

2. Be Quiet! Pure Rock 2

An affordable and effective cooler that really can be quiet

Specifications

Socket support: Intel LGA 1150, 1151, 1155, 1200, 2011, 2011-3, 2066, AMD AM3 & AM4 compatible
Fans: 1x Pure Wings 2 120mm
Fan speeds: Up to 1500RPM
Dimensions (L x W x H): 87 x 121 x 155 mm
Noise level: Max 26.8dB(A)

Reasons to buy

+
Very quiet operation
+
Great price
+
Good build quality

Reasons to avoid

-
Super basic looks
-
150W TDP is a touch optimistic

If the brand name didn’t already give it away, the Be Quiet Pure Rock 2 really is quiet! It’s a single tower cooler equipped with the company's highly regarded Pure Wings 2 PWM fan which carries a low 26.8dB(A) noise rating. That means it's very quiet indeed. It feels really solid too, an indicator of good build quality and it comes in at a low price.

We wouldn’t describe the Pure Rock 2 as the most beautiful cooler on the market. But if you do have a windowed case, you could consider the black version which is certainly more attractive than the plain aluminum finish of the base version. The Pure Rock 2 is primarily designed to cool - unseen and unheard. It's rated to cool CPUs with a 150W TDP.

Though perhaps this is a touch optimistic, but that’s down to the CPU manufacturers and their 'real' TDPs. An Intel Core i5 12600K (opens in new tab) or AMD Ryzen 7 5800X (opens in new tab) won't present a problem for the Pure Rock 2.

For anything other than high-end CPUs, the Pure Rock 2 will keep your chip cool and quiet. If you're not interested in bling and want something that's a step up from bundled coolers, the Pure Rock 2 is a fantastic choice. It will cool out of sight, mind, and earshot.

Noctua NH-D15 Chromax Black CPU air cooler on a blank background

(Image credit: Noctua)

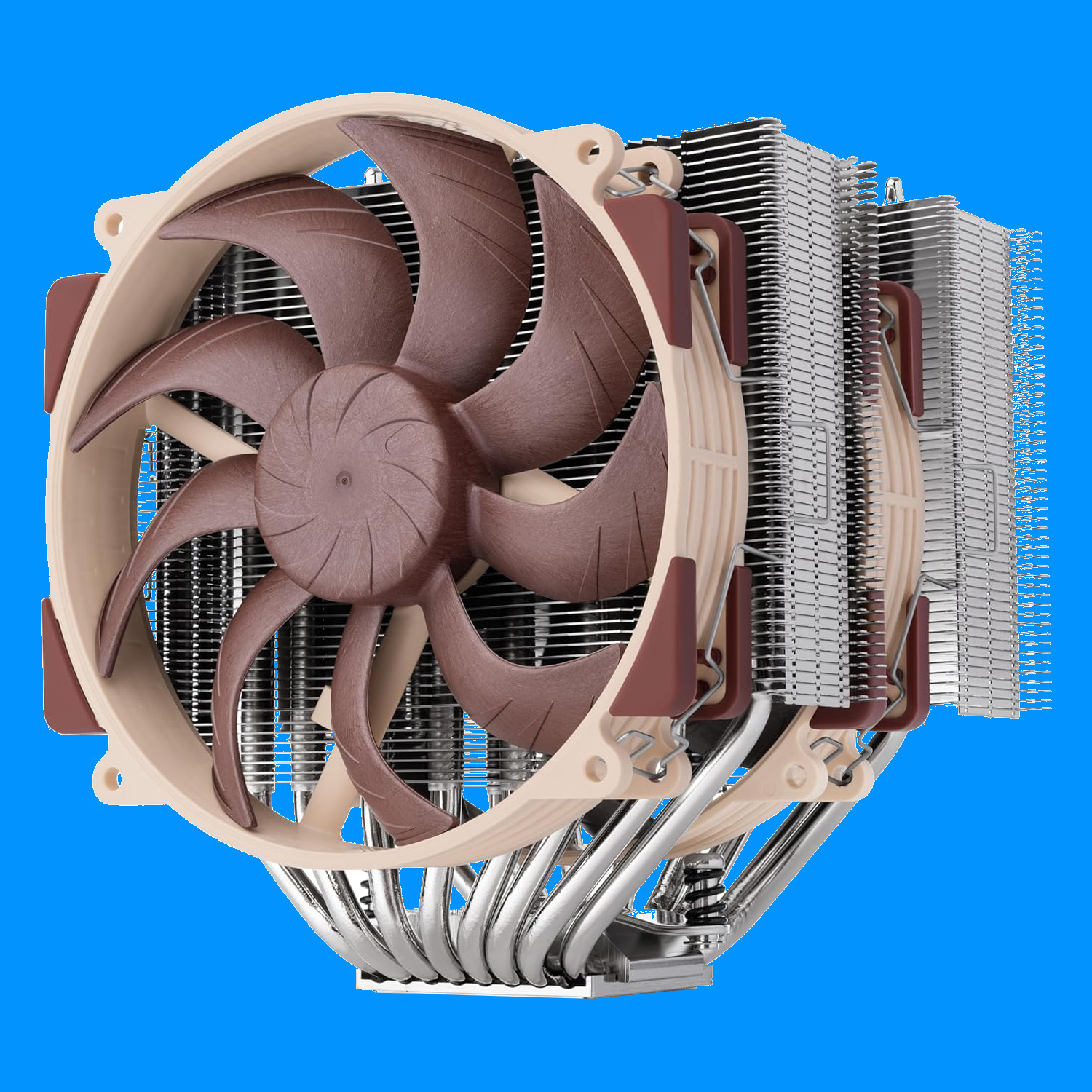

3. Noctua NH-D15 Chromax Black

You'll be hard pressed to find a better performing air cooler than the Noctua NH-D15 Chromax Black

Specifications

Socket support: Intel LGA 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066, AMD AM4, AM3, AM2, FM2 & FM1 compatible
Fans: 2x NF-A15 HS-PWM
Fan speeds: 300–1500RPM
Dimensions (L x W x H): 161 x 150 x 165mm
Noise level: Max 24.6dB(A)

Reasons to buy

+
Awesome cooling performance
+
Quiet under typical loads
+
Solid build quality
+
All black good looks

Reasons to avoid

-
Big
-
Louder than you might expect under load

The Noctua NH-D15 Chromax Black is considered by many to be the best air cooler on the market. We love it too, and it's an easy inclusion on our list of recommended coolers. It performs brilliantly, it's got excellent fans that are a welcome black colour instead of that rather unsightly beige and maroon (sorry, Jacob (opens in new tab)), its build quality is fantastic and Noctua's packaging, accessories and documentation are second to none.

Really, only 360mm AIO coolers outperform it. If you want an air cooler that can handle any consumer CPU on the market, you might find one to match the Noctua flagship, but you won’t find anything that truly beats it.

Under normal operation the NH-D15 can be considered truly silent. When pushed hard it becomes louder than you might expect, such as you might get when hammering out an AVX load, but we don’t mind having some optional cooling headroom when you need it. Even a 5GHz+ Core i9 12900K (opens in new tab) will result in quiet running while gaming.

The NH-D15 also comes with two 140mm fans, which run slower than their 120mm counterparts, for quieter operation, but move plenty of air. If two of these are too loud for you, there's always the option of removing one, if need be. If you want to remove both, however, for a truly silent CPU cooler, you'd best take a look at the Noctua NH-P1 below instead. That's actually designed to run without fans.

But why isn't the NH-15 number one on our list? It's probably overkill for a lot of PC builds, especially if you're running your chip stock. It's absolutely overkill as a straight swap for the stock cooler than comes with many Intel and AMD chips. Perhaps the sheer size of it, too, though that can easily be forgiven considering its excellent performance.

Notably, Noctua has a long tradition of adding support for new sockets, and an investment in a NH-D15 Chromax Black means you'll have a top shelf cooler that will last you for many years. That said, make sure to check it's compatible with your socket of choice before buying one.

Passive cooling

The best passive CPU cooler

Shiny, powerful, and silent

Specifications

Type: Passive air cooling
Compatibility: Intel LGA 1200, 115x, 2011/2066; AMD AM2-AM4
Fan speed: NA
Noise volume: Silent
Dimensions: 158 x 154 x 152 mm
Weight: 1800g

Reasons to buy

+
Completely silent
+
Compatible with high-end CPUs
+
Plenty cool enough for gaming workloads

Reasons to avoid

-
Large
-
Requires a case with good airflow
Silicon dreams

(Image credit: Future)

These are the current best CPUs for gaming (opens in new tab) to build your rig around.

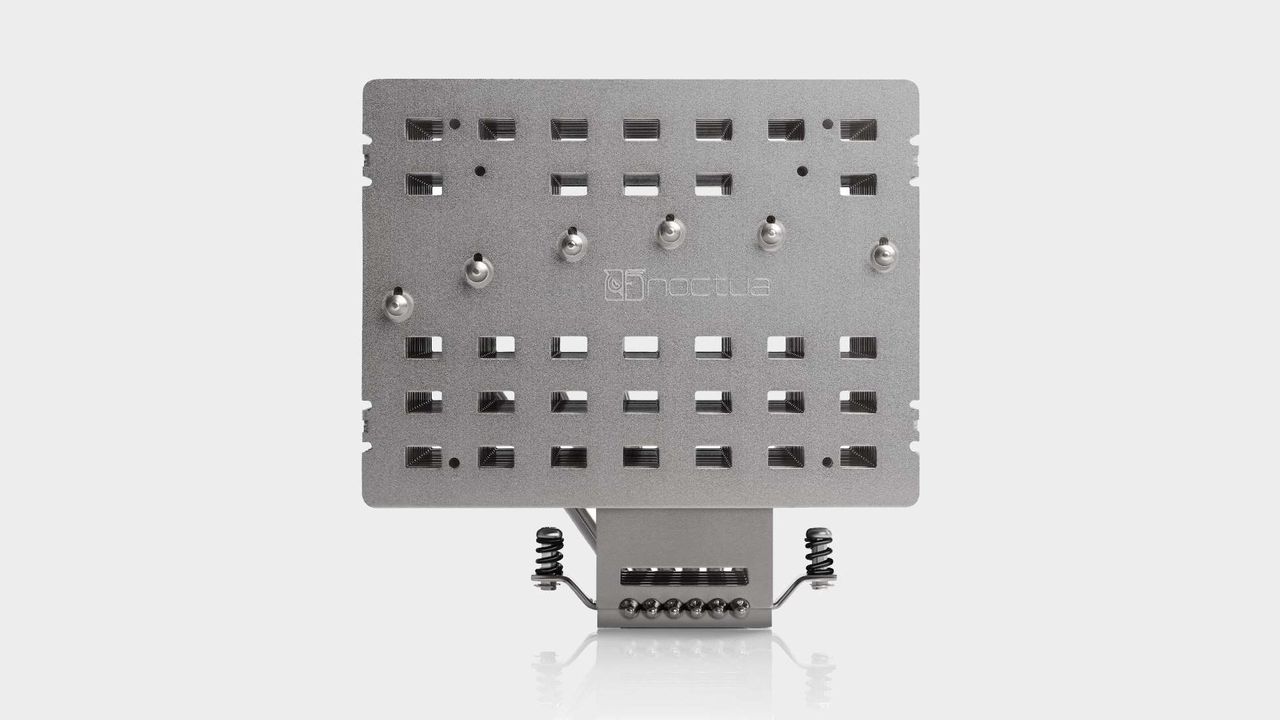

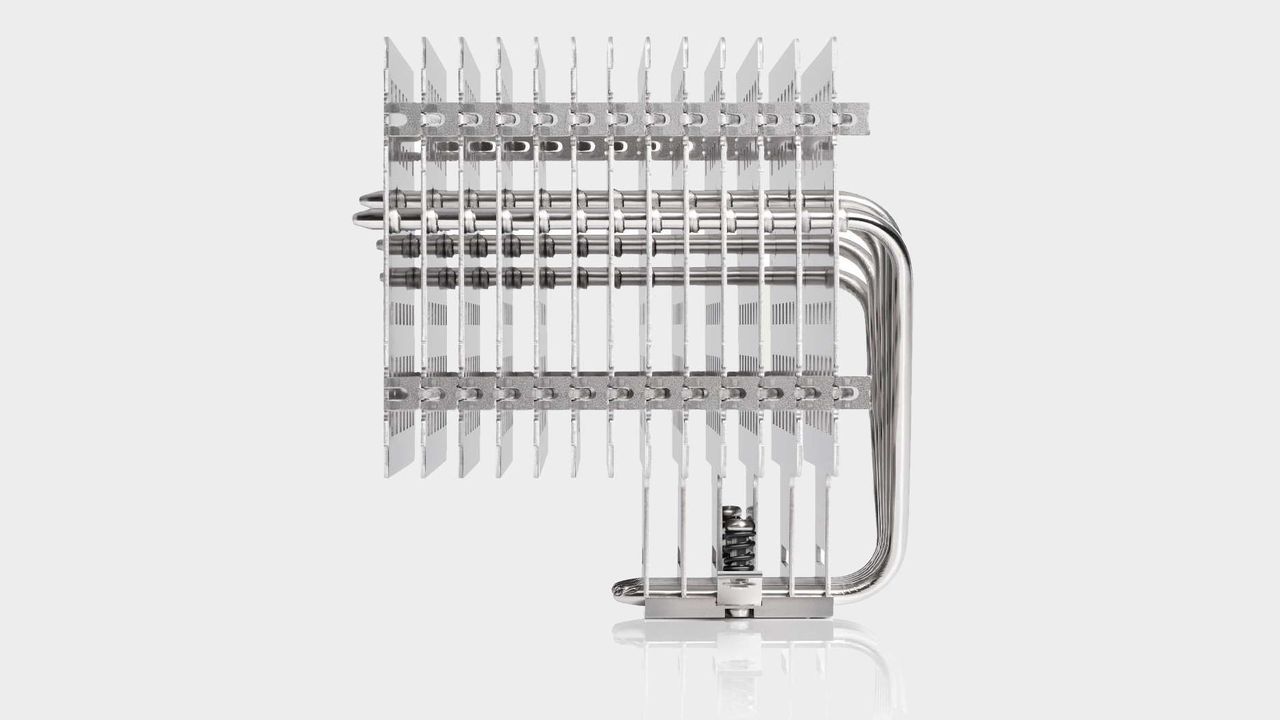

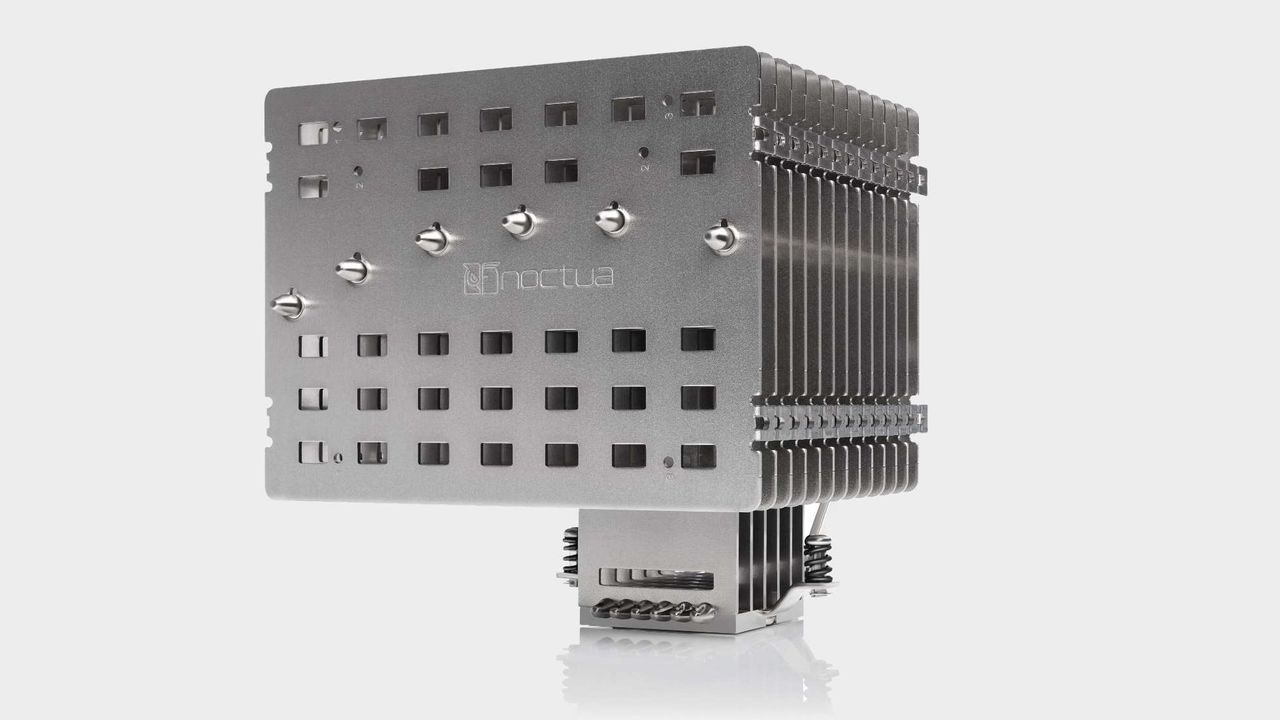

The Noctua NH-P1 is certainly a niche CPU cooler, but it's also an exciting one in that it shakes up what a completely silent chip chiller is capable of. Previously, if you wanted a passive cooler you would either have to pair it with an underpowered processor, or you would have to seriously limit the clock speed of your chip.

From a glance, you might see nothing more than a hulking CPU cooler, but the Noctua NH-P1 is far more exciting than that. As a passive design, it requires no fan to keep your CPU at a stable temperature. Yes, even while gaming. And if you hadn't already guessed, that's a pretty big deal for silent PC builds. The NH-P1 is capable of cooling even high-end CPUs using only natural convection. That's sort of what makes it a big deal in the cooling world. It does this through a design that's vastly disparate from your usual chip chiller.

Essentially, this is a passive cooler that can actually keep a decent gaming processor powered up. We've tested the NH-P1 on our Core i7 10700K open test bench—which has no fans, and therefore completely unoptimised airflow—and while it may throttle on seriously CPU intensive benchmarks, it absolutely flew on our standard gaming tests.

That chip is slightly over Noctua's own recommendations for the NH-P1, but you can check out its compatibility centre to see whether your CPU will be supported by this chonky chip chiller.

Sit the NH-P1 side-by-side with the NH-D15 we recommend in the best air cooler guide above, and you'll notice they're oriented differently. The heat pipes are actually longest along their horizontal axis, which will undoubtedly impact heat dispersion due to the reliance on gravity for a heat pipe to function. Noctua has also expanded the heat pipe layout to more evenly distribute the heat across the surface area, and each one is soldered to the fins to ensure a continuous connection over time between the two different metals forming the cooler: copper for the base and heat pipes and aluminum for the fins.

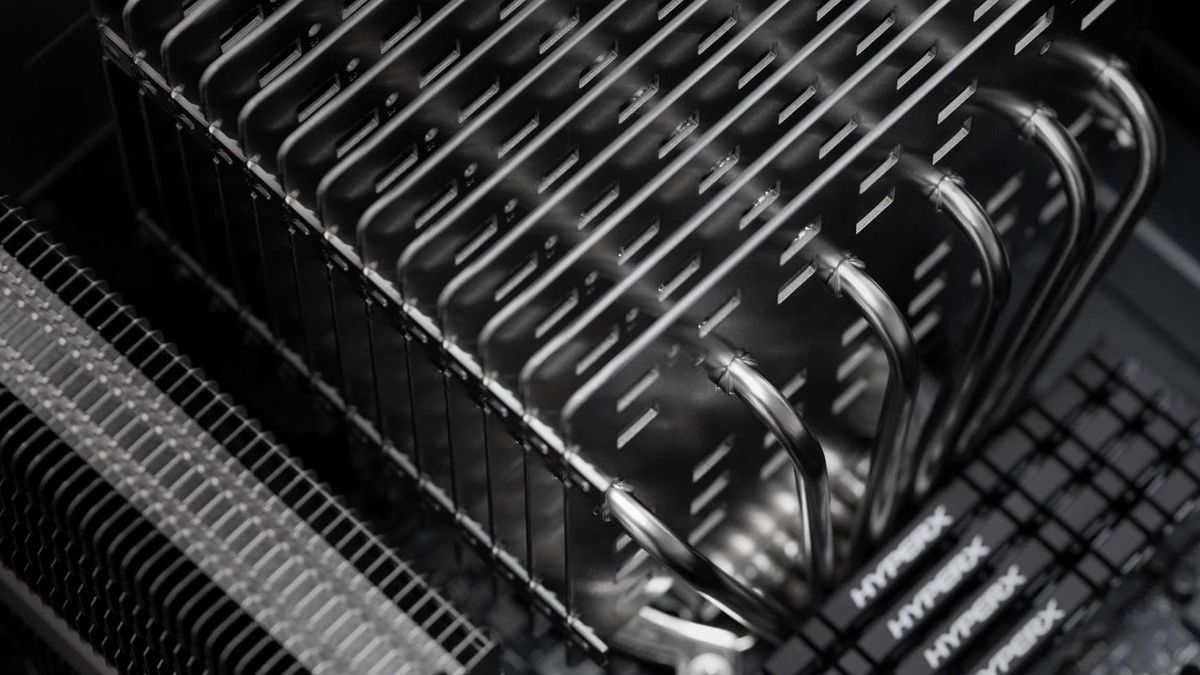

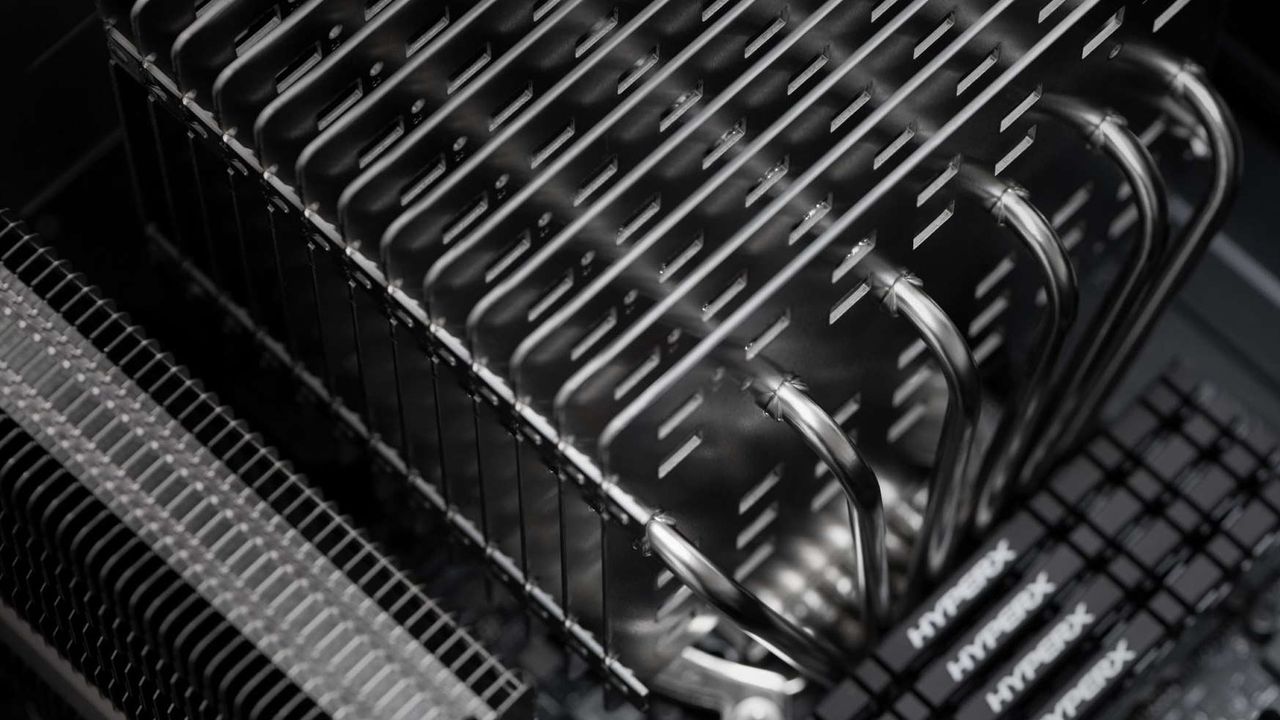

And yes, it is big. The RAM clearance is fine, as Noctua has engineered it to sweep away from dual-channel DIMM slots, but it's still going to take up a whole lot of space in your chassis. If you want to get the most out of it, you're also going to need some decent airflow in your case, too. Unless you're going for a completely fanless vibe, that is.

The Noctua NH-P1 is well-designed, impressively powerful passive cooler that could well keep your gaming PC quiet. Though it's not going to do anything for that noisy graphics card, I'm afraid.

Read our full Noctua NH-P1 review (opens in new tab).

Best CPU cooler FAQ

How do I choose the CPU cooler that's right for me?

If you aren't sure whether you need an air cooler or a liquid cooler, it comes down to budget and compatibility. The first thing to check is whether a cooler supports the socket on your motherboard, and offers a sufficient mounting solution. Most coolers today are compatible with AMD's AM4 socket and Intel's latest LGA 1700 socket, and should include the prerequisite parts to install them inside the box. Some older coolers, perhaps second-hand ones, may not support the latest chips, however.

The other thing to be on the lookout for is whether a cooler is sufficient for your CPU. A certain amount of energy is wasted by your CPU as heat, and that needs to be dissipated effectively. A cooler does that, but some high-end processors require better cooling to keep temperatures low. Coolers often come with TDP ratings denoting what TDP of CPU they can sufficiently chill, but it's not always this straightforward. Some CPUs require larger contact points for adequate cooling, such as AMD's Threadripper chips, while Intel's 12th Gen CPUs often hit power draw much higher than their stated TDP.

Basically, just be careful to check out what sort of chip a CPU cooler is rated to cool, especially if you're planning on overclocking.

Those on tight budgets now don't necessarily need to consider an aftermarket air cooler. Until AMD released its Wraith coolers (and then took them away again), we'd never recommend a stock cooler to any PC gamer, but they're a good stand-in when money is tight. Still, it's best to replace these with something beefier eventually, and if you have a little more spending room, liquid coolers can offer a whole lot more—from advanced RGB lighting to intelligent software control.

Some of you may be wary about putting liquid near your expensive components, but rest assured all of the coolers recommended in this guide are backed with excellent warranties that will cover you in the event of a manufacturer failure—a colossal leakage is an infrequent occurrence, anyways.

Is liquid cooling quieter than air cooling?

In general, an all-in-one liquid CPU cooler will be quieter than an air cooler mounted directly on top of the processor itself. That's because the fans attached to the cooling radiator are generally larger and can therefore spin slower than an air cooler. The water pump is often well insulated, but there can be some noise from this part, however.

But there are large air coolers with big heatsinks and large fans that can compete well with the noise generation of an AIO liquid cooler. The Noctua NH-D15, for example, has two 140mm fans and is very quiet in operation. The quietest of all would be an entirely passive cooler, one with no moving parts whatsoever. However, those can't always cope with the most hot and heavy CPUs.

Do I need liquid cooling if I don't overclock my CPU?

Liquid cooling can undoubtedly give your processor the thermal headroom it needs to run comfortably overclocked, but there are other reasons you might want to have an AIO in your system. The vainest is the aesthetic—not having a huge hulking heatsink clogging up your chassis when there's a Perspex peephole to show off your components is often desirable.

That can also play into having a smaller chassis entirely. Liquid coolers can often give you the thermal performance to run a high-spec CPU in a small chassis where you'd only otherwise be able to fit a weaker, small form factor air cooler.

How does liquid cooling work anyway?

The coolant passes through a closed-loop via a plate that's attached to your CPU, and in combination with the attached radiator and fan, it cools the CPU. It's simple and a hundred times easier to install than an entire water-cooling loop.

How do you test CPU coolers?

Like most components, choosing the right CPU cooler depends on several variables, including performance requirements, case compatibility, budget restrictions, and aesthetics. To find the best CPU coolers, we test performance using Prime95 and a mixture of modern PC games for extensive stress testing. Our top selections were made based on thermal performance, noise, value, and overall feature sets.
